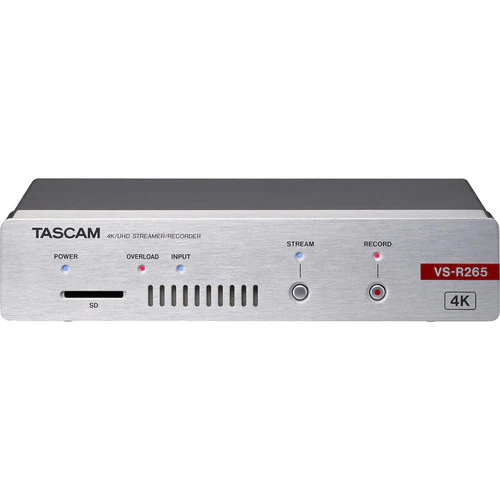

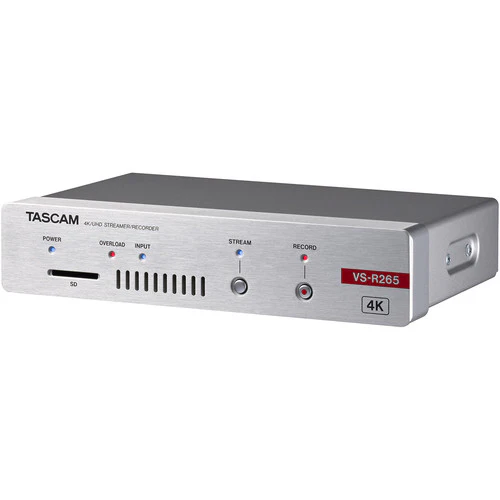

TASCAM VSR-265 Stand-Alone 4K UHD Video Encoder/Decoder for Live Streaming (HDMI)

Product image 1
Product image 2
Product image 3
Product image 4

TASCAM VSR-265 Stand-Alone 4K UHD Video Encoder/Decoder for Live Streaming (HDMI)

TASCAM VSR-265 Stand-Alone 4K UHD Video Encoder/Decoder for Live Streaming (HDMI)

Key Features
  • H.264/H.265 Streaming and Recording
  • Resolution Supported up to 3840 x 2160
  • HDMI Input/Output
  • Streams via RTSP, RTMP
  • Analog 3.5mm Audio Input/Output
  • Bit Rate up to 30 Mb/s
  • Supports TASCAM DISCOVERY App
  • PoE+ or Optional Power Supply
  • Mounting Brackets Included

Overview

The TASCAM VSR-265 Stand-Alone 4K UHD Video Encoder/Decoder for Live Streaming streams and records up to 3840 x 2160 over IP. It simultaneously records video, encodes, streams, and decodes multiple streams using the H.264 or H.265 codec. It supports encoding at up to 30 Mb/s using H.264/H.265 and can record to either SD cards, or attached USB drives.

The TASCAM DISCOVERY app allows you to remotely manage multiple units via an easy-to-use web GUI. After setup, all settings are saved locally to the individual VS-R units, so they can operate without being controlled by a computer. The unit powers by PoE+, allowing you to place it anywhere you can run an appropriate Ethernet cable connected to a router that supports PoE+. If that is not possible, an AC power adapter is available. Mounting brackets are included, and an optional AK-RS1 shelf allows you rackmount two units side-by-side.

Key Specs

IP Video
H.264/H.265:
3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p Encoding, Decoding
H.264/H.265:
720 x 480 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 50i, 59.94p, 60p Encoding, Decoding
Simultaneous Streams
2 Streams
Video I/O
1x HDMI (HDMI 1.4a) Input
1x HDMI (HDMI 2.0) Output
Recording Media
1x SDHC
1x USB-A 3.0 / 3.1/3.2 Gen 1
Recording Modes
3840 x 2160p at 23.98/24/25/29.97/30 fps (MP4 via H.264/AVC, H.265/HEVC)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps (MP4 via H.264/AVC, H.265/HEVC)
1280 x 720p at 50/59.94/60 fps (MP4 via H.264/AVC, H.265/HEVC)
720 x 576p at 50 fps (MP4 via H.264/AVC, H.265/HEVC)
720 x 480p at 59.94/60 fps (MP4 via H.264/AVC, H.265/HEVC)
IP Encoding/Decoding
IP Video
H.264/H.265:
3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p Encoding, Decoding
H.264/H.265:
720 x 480 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 50i, 59.94p, 60p Encoding, Decoding
Transport Protocols
RTMP, RTSP
Simultaneous Streams
2 Streams
Wi-Fi
No
Bluetooth
No

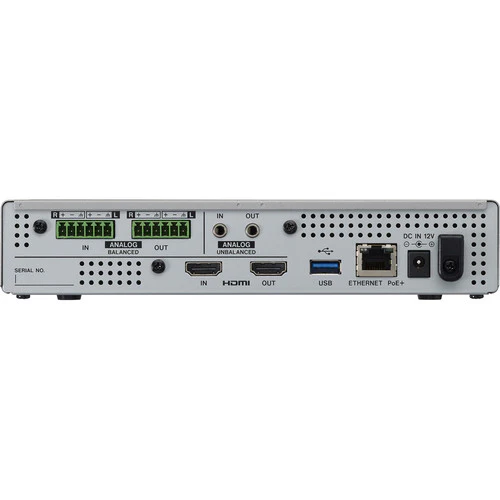

Interfaces
Video I/O
1x HDMI (HDMI 1.4a) Input
1x HDMI (HDMI 2.0) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Analog Input
1x Block 6-Pin Stereo Analog Input
1x 1/8" / 3.5 mm TRS Stereo Analog Output
1x Block 6-Pin Stereo Analog Output
Other I/O
1x RJ45 Gigabit Ethernet Input/Output
Internal Recording
Recording Media
1x SDHC
1x USB-A 3.0 / 3.1/3.2 Gen 1
Recording Modes
3840 x 2160p at 23.98/24/25/29.97/30 fps (MP4 via H.264/AVC, H.265/HEVC)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps (MP4 via H.264/AVC, H.265/HEVC)
1280 x 720p at 50/59.94/60 fps (MP4 via H.264/AVC, H.265/HEVC)
720 x 576p at 50 fps (MP4 via H.264/AVC, H.265/HEVC)
720 x 480p at 59.94/60 fps (MP4 via H.264/AVC, H.265/HEVC)
Power
Power I/O
1x RJ45 Input
1x Barrel (12 VDC at 2 A) Input
General
Dimensions
8.43 x 5.36 x 1.75" / 214 x 136.1 x 44.5 mm (Includes Protusions)
Weight
1.76 lb / 0.8 kg
Packaging Info
Package Weight
2.85 lb
Box Dimensions (LxWxH)
10.5 x 8.25 x 4.22"

What's in the Box:

  • TASCAM VSR-265 Stand-Alone 4K UHD Video Encoder/Decoder for Live Streaming (HDMI)
  • 2 x Installation Bracket
  • 2 x Euroblock Plug
  • Cable Band Kit
  • USB Thumbdrive
  • Limited 1-Year Manufacturer Warranty
