TASCAM Model 24 - Digital Mixer, Recorder, and USB Audio Interface

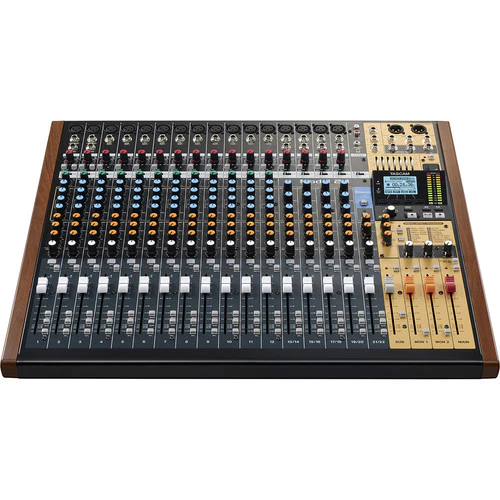

Product image 1
Product image 2

TASCAM Model 24 - Digital Mixer, Recorder, and USB Audio Interface

TASCAM Model 24 - Digital Mixer, Recorder, and USB Audio Interface

Key Features
  • 22 x Input Channels
  • 16 x Microphone Preamps
  • 20 x Line Inputs (12 Mono + 4 Stereo)
  • Single-Knob Compressor
  • 7-Band GEQ for Main or Monitor Outputs
  • 3 x Aux Sends + Built-In Multi-FX
  • 24-Track Recorder and Playback
  • USB 2.0 Audio Interface (24-In x 22-Out)
  • Wireless Bluetooth Connectivity



Overview

The highly flexible TASCAM Model 24 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications, well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured professional mixer offers 22 input channels including 16 microphone preamps with phantom power, two 1/4" Hi-Z jacks, 12 balanced 1/4" mono line inputs, and four balanced 1/4" stereo line inputs. Additionally, the last stereo input also accepts signals from a variety of sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack.

There is single-knob compression available on the first 12 channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX effects. The main and sub stereo buses offer simple grouping, as well as a selectable 7-band graphic EQ for fine tuning your mix. The Model 24 offers 21 faders, with 100mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, allowing for versatility in any environment.

The onboard 24-track recorder takes its cue from TASCAM's Portastudio line, offering multitrack recording with the ability to record 22 tracks plus the stereo master internally. Multichannel playback for advanced live performance backing or mixing. What's more, the simple interface allows you to punch in/out of recording and playback without extensive menu diving. Additionally, the Model 24 features a 22 x 24 USB audio interfaced allowing for the transmission of 22 input channels plus the stereo master at up to 24-bit/48 kHz resolution.



Key Specs

General
Form Factor
Desktop
Number of Tracks
24 (22 Inputs + Stereo Mix)
Maximum Simultaneous Tracks
22x Recording
Display
1x LCD
Maximum Sampling Rate
48 kHz / 24-Bit
Number of Microphone Inputs
16
Built-In Microphone
No
Input Level Adjustment
17x Fader
Meters
Main Meter:
1x 12-Segment LED
Number of Headphone Mixes
1x Master
Sample Pads
No
Signal Processing
Pad
No
Gain/Trim Range
-10 dB to +40 dB (Channels 1 to 12)
-20 dB to +30 dB (Channels 13 to 20)
Mic Inputs:
Up to 50 dB
High-Pass Filter
100 Hz, 18 dB/Octave
EQ Parameters
Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 100 Hz to 8 kHz, 0.55 Q (Semi-Parametric)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 600 Hz, 0.55 Q (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Graphic EQ:
±15 dB at 8 kHz
±15 dB at 4 kHz
±15 dB at 2 kHz
±15 dB at 1 kHz
±15 dB at 500 Hz
±15 dB at 250 Hz
±15 dB at 125 Hz
Dynamic Processing
No
Solo/Mute
Mute per Input Channel, FX Bus, Master
Built-In Effects
7x Reverb
2x Mono Delay
1x Stereo Delay
Chorus
Flanger
2x Delay+Reverb
2x Chorus+Reverb
Connectivity
Analog Audio I/O
16x XLR 3-Pin Balanced Mic Input
20x 1/4" TRS Balanced Line Input
1x Stereo RCA Unbalanced Line Input
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Input
2x XLR 3-Pin Balanced Main Output
2x 1/4" TRS Control Room Output
1x 1/4" TRS FX Output
1x 1/4" TRS Headphone Output
2x 1/4" TRS Monitor Output
2x 1/4" TRS Subgroup/Bus Output
2x 1/4" TRS Unbalanced Insert In/Out
Phantom Power
48 V
Host Connection
1x USB-B (Class-Compliant)
Host Connection Protocol
USB 2.0
MIDI I/O
No
Other I/O
1x 1/4" TS Remote Input
Wireless
Bluetooth 4.0
Performance
Maximum Input Level
1/8" / 3.5 mm Inputs:
+8 dBV (Unbalanced, Stereo)
RCA Inputs:
+8 dBV (Unbalanced)
Mic Inputs:
+10 dBu
Line Inputs:
+22 dBu
Insert Return:
+18 dBu
Maximum Output Level
Monitor/FX/Subgroup/Control Room Outputs:
+16 dBu
XLR Main Outputs:
+22 dBu
Headphone Output Power
80 mW per Channel into 32 Ohms
Impedance
1/8" / 3.5 mm Inputs:
10 Kilohms
RCA Inputs:
10 Kilohms
Mic Inputs:
1.8 Kilohms
Line Inputs:
22 Kilohms (Balanced)
Control Room/FX/Monitor/Subgroup Outputs:
100 Ohms
Insert Return:
10 Kilohms
Insert Send:
100 Ohms
XLR Main Outputs:
100 Ohms
Digital Audio
Audio File Formats
Recording:
BWF, WAV
Playback:
BWF, WAV
Sample Rates
44.1 / 48 kHz
Bit Depths
16 / 24-Bit
Audio Storage & Playback
Supported Media
USB Hard Disk Drive
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC
Supported Media Capacity
SD:
512 MB Minimum to 2 GB Maximum
SDHC:
4 GB Minimum to 32 GB Maximum
SDXC:
64 GB Minimum to 512 GB Maximum
File System Support
SD: FAT16
SDHC: FAT32
SDXC: exFAT
Compatibility
Mobile Device Compatibility
Android Smartphone
iPhone
Required Hardware
USB 2.0 Port, USB-A Port
Power
Power Requirements
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
52 W
Physical
Dimensions
22.7 x 20.2 x 4.4" / 575.8 x 513.1 x 112.5 mm (with Side Panel)
20.3 x 19.8 x 4.4" / 514.6 x 502.9 x 112.5 mm (without Side Panel)
Weight
22.0 lb / 10.0 kg



What's in the Box:

  • TASCAM Model 24 - Digital Mixer, Recorder, and USB Audio Interface
  • Power Cord
  • Limited 1-Year Manufacturer Warranty (Parts)
  • Limited 90-Day Manufacturer Warranty (Labor)
$1,143.36
