Blackmagic Design Studio Camera 6K Pro (EF Mount)

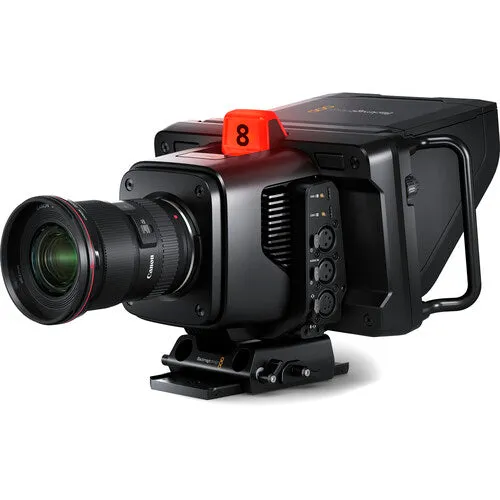

Product image 1
Product image 2
Product image 3

Blackmagic Design Studio Camera 6K Pro (EF Mount)

Blackmagic Design Studio Camera 6K Pro (EF Mount)

Key Features
  • Active Canon EF Lens Mount
  • Capture up to 6K 6144 x 3456p50
  • Live Streaming
  • Remote Controlled ND Filters
  • Raw Recording to External USB-C Disks
  • Records Blackmagic Raw, Up to 25,600 ISO
  • 7" High-Brightness HDR Touchscreen LCD
  • 12G-SDI, HDMI & 10G Ethernet Video I/O
  • XLR & 3.5mm Audio Input, Built-In Mics
  • Built-In DaVinci Resolve Color Corrector

Ā

Overview

Boost your studio recording with cinematic images using theĀ Blackmagic Design Studio Camera 6K Pro. This latest model of the Studio Camera not only boasts a 6K sensor for greater resolution and full RGB color, it also features an active Canon EF mountā€”providing compatibility with a large array of affordable EF-mount cine-style and still lenses. The Studio Camera 6K Pro now offers live streaming while retaining the talkback, tally, color correction, and raw recording to USB disks of the original 6K version. Built-in, electronically controllable ND filters let you quickly adapt to changing light conditions and a host of both broadcast and consumer interfaces makes it a snap to connect the 6K Pro to your studio setup.

Key Specs

Lens Mount
Canon EF Mount
Broadcast System Compatibility
NTSC, PAL
Video I/O
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
1x HDMI Output
Audio I/O
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body
1x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x XLR 5-Pin Intercom Input/Output
Raw Recording
Blackmagic RAW 10-Bit
6144 x 3456 up to 50 fps
5376 x 3024 up to 60 fps
3840 x 2160 up to 60 fps
Display Type
Fixed Touchscreen LCD
Power I/O
1x XLR 4-Pin (12VDC) Input
1x Barrel (12VDC) Input
Imaging
Image Sensor
23.1 x 12.99 mm (Super35) CMOS
Sensor Resolution
Not Specified by Manufacturer
ISO Sensitivity
100 to 25,600
Gain
0 to 18 dB
Sensitivity
f/11 at 2000 lux 89.9% Reflectance (UHD 4K60)
f/12 at 2000 lux 89.9% Reflectance (UHD 4K60)
Signal-to-Noise Ratio
63 dB
Camera
Lens Mount
Canon EF Mount
Shutter Speed
1/5000 to 1/24 Second
Built-In ND Filter
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Built-In Microphone
Stereo
Broadcast System Compatibility
NTSC, PAL
Interfaces
CCU I/O
No
Video I/O
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
1x HDMI Output
Audio I/O
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body
1x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x XLR 5-Pin Intercom Input/Output
Other I/O
1x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output
2x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output
Recording
Raw Recording
Blackmagic RAW 10-Bit
6144 x 3456 up to 50 fps
5376 x 3024 up to 60 fps
3840 x 2160 up to 60 fps
Audio Recording
ProRes: 2-Channel 24-Bit 48 kHz LPCM Audio
Display
Display Type
Fixed Touchscreen LCD
Display Size
7"
Resolution
1920 x 1200
Power
Power I/O
1x XLR 4-Pin (12VDC) Input
1x Barrel (12VDC) Input
Power Consumption
59 W
General
Operating Conditions
32 to 72Ā°F / 0 to 40Ā°CĀ up to 90% Humidity
Storage Conditions
-4 to 113Ā°F / -20 to 45Ā°CĀ
Accessory Mounting Thread
2x 1/4"-20
Tripod Mount
3/8"-16 Female
Dimensions (W x H x D)
10.77 x 7.83 x 6.59" / 27.36 x 19.89 x 16.74Ā cm (Without Protrusions)
Weight
4.28Ā lb / 1.94Ā kg
Packaging Info
Package Weight
8.165 lb
Box Dimensions (LxWxH)
12.6 x 10.6 x 8.2"

What's in the Box:

  • Blackmagic Design Studio Camera 6K Pro (EF Mount)
  • Sun Shade
  • 15mm LWS Tripod Mount
  • Tripod Mount Plate
  • Turret Dust Cap
  • Universal Power Supply with International Socket Adapters
  • DaVinci Resolve 18 Free Download
  • Sticker
  • Limited 1-Year Manufacturer Warranty
$962.46

Original: $2,749.90

-65%
Blackmagic Design Studio Camera 6K Pro (EF Mount)ā€”

$2,749.90

$962.46
