Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder

Product image 1
Product image 2

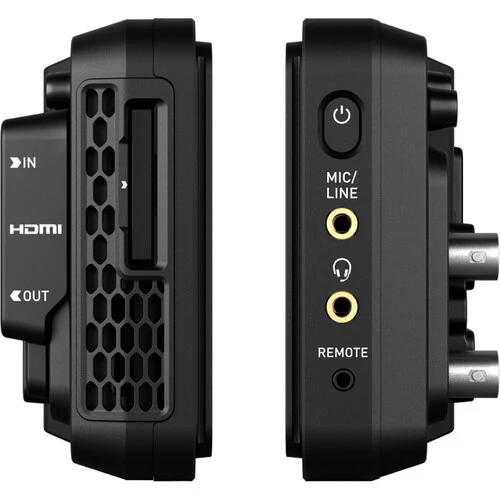

Product image 3

Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder

Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder

Key Features
  • 1920 x 1080 IPS Touchscreen, 4K60 I/O
  • All Codecs + NDI License Preloaded
  • Locking 12G-SDI/HDMI 2.0 Input/Output
  • Records to CFexpress Type B Slot, USB-C
  • Camera Control & Touch to Focus
  • 1500 cd/mĀ² Brightness
  • Integrated Wi-Fi/TC Sync/Uploading
  • 8K30 ProRes RAW Recording
  • Cross Conversion, W-Fi Firmware Updates
  • Updated AtomOS Linux Operating System

Ā

Overview

Totally reengineered, packed with features, and still aligned with the classic Ninja monitor line, theĀ Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/RecorderĀ is a 5" on-camera monitor and recorder ideal for use on any set. New features include both 12G-SDI and HDMI 2.0 input/output, camera control, touch to focus, integrated Connect technology providing Wi-Fi connectivity for TX/RX streaming and direct upload, a brighter 1500 cd/mĀ² touchscreen display, 8K30 raw recording, recording to CFexpress Type B or USB-C, RF/Bluetooth timecode sync, a built-in NDI/HX3 license, and all codecs such as ProRes RAW/DNx/H.265 are now built in.


Key Specs
Display Size
5.2" / 13.2Ā cm
Native Resolution
1920 x 1080
Touchscreen
Yes
HDR Support
Yes: Hybrid Log Gamma
Video I/O
HDMI / BNC
Media/Memory Card Slot
Single Slot: CFexpress Type B [Record/LUT/Firmware]
Video Format
HDMI (8/10/16-Bit 4:2:2)
8K Raw: 30
6K Raw: 60/30
3.5K Raw: 60
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50
720p: 60/59.94/50
Battery
1x L-Series Mount on Fixed Plate
Power Consumption
30 W
Dimensions
5.9 x 3.6 x 1.4" / 151 x 92 x 36Ā mm
Weight
14.1Ā oz / 400.00Ā g

What's in the Box:
  • Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder
  • USB-C Locking Cable Adapter
  • HDMI Locking Cable Adapter
  • Antenna Tip Set (Black, White, Yellow, Green, Red)
  • AirGlu Antenna
  • Antenna Cap Set
  • USB-C PD Locking Cable (17.7")
  • Limited 1-Year Manufacturer Warranty
$1,020.83
Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorderā€”
$1,020.83

Product Information

Shipping & Returns

Description

Key Features
  • 1920 x 1080 IPS Touchscreen, 4K60 I/O
  • All Codecs + NDI License Preloaded
  • Locking 12G-SDI/HDMI 2.0 Input/Output
  • Records to CFexpress Type B Slot, USB-C
  • Camera Control & Touch to Focus
  • 1500 cd/mĀ² Brightness
  • Integrated Wi-Fi/TC Sync/Uploading
  • 8K30 ProRes RAW Recording
  • Cross Conversion, W-Fi Firmware Updates
  • Updated AtomOS Linux Operating System

Ā

Overview

Totally reengineered, packed with features, and still aligned with the classic Ninja monitor line, theĀ Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/RecorderĀ is a 5" on-camera monitor and recorder ideal for use on any set. New features include both 12G-SDI and HDMI 2.0 input/output, camera control, touch to focus, integrated Connect technology providing Wi-Fi connectivity for TX/RX streaming and direct upload, a brighter 1500 cd/mĀ² touchscreen display, 8K30 raw recording, recording to CFexpress Type B or USB-C, RF/Bluetooth timecode sync, a built-in NDI/HX3 license, and all codecs such as ProRes RAW/DNx/H.265 are now built in.


Key Specs
Display Size
5.2" / 13.2Ā cm
Native Resolution
1920 x 1080
Touchscreen
Yes
HDR Support
Yes: Hybrid Log Gamma
Video I/O
HDMI / BNC
Media/Memory Card Slot
Single Slot: CFexpress Type B [Record/LUT/Firmware]
Video Format
HDMI (8/10/16-Bit 4:2:2)
8K Raw: 30
6K Raw: 60/30
3.5K Raw: 60
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50
720p: 60/59.94/50
Battery
1x L-Series Mount on Fixed Plate
Power Consumption
30 W
Dimensions
5.9 x 3.6 x 1.4" / 151 x 92 x 36Ā mm
Weight
14.1Ā oz / 400.00Ā g

What's in the Box:
  • Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder
  • USB-C Locking Cable Adapter
  • HDMI Locking Cable Adapter
  • Antenna Tip Set (Black, White, Yellow, Green, Red)
  • AirGlu Antenna
  • Antenna Cap Set
  • USB-C PD Locking Cable (17.7")
  • Limited 1-Year Manufacturer Warranty
